Automatic Nozzle Change High Precision IC Bonding Machine WBD2200 PLUS 8-12 Inch Wafers

General type high-precision IC bonder, which is suitable for mass wafer loading products, SIP packaging, Memory Stack Die (memory stack), CMOS, MEMS and other processes.

Features:

• Multilayer capability
• Automatic nozzle change
• Supermini chip placement
• Compatible with 8-12 inch wafers
• Ultrathin die bonding technology
• Bottom photo-taking, high precision placement
• Automatic loading and unloading
• Automatic wafer change

Main application:

It is suitable for mass wafer loading products, and for SIP packaging, Memory Stack Die (memory stack), CMOS, MEMS and other processes. It is mainly used in automotive electronics, medical electronics, optoelectronics, mobile phones and other industries.

Product advantage:

High precision Accuracy :±15μm@3σ Angle: Die size: > 1 x 1 mm ±0.3°@3σ Die size: < 1 x 1 mm ±1°@3σ

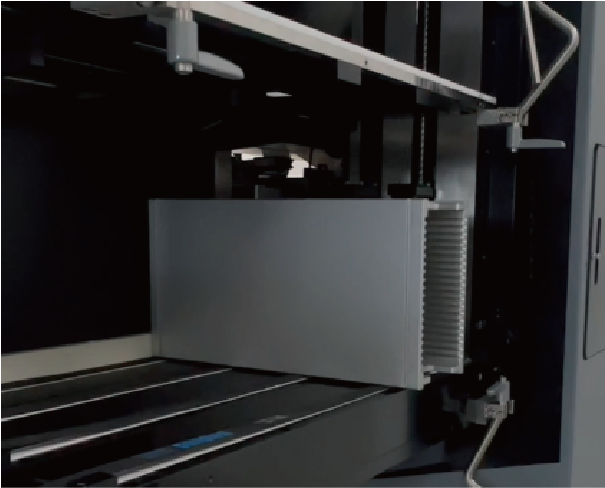

Material box loading Fully automatic feeding and discharging Warehouse processing system, supported by SMEMA online communication agreement,support the SECS/GEM protocol

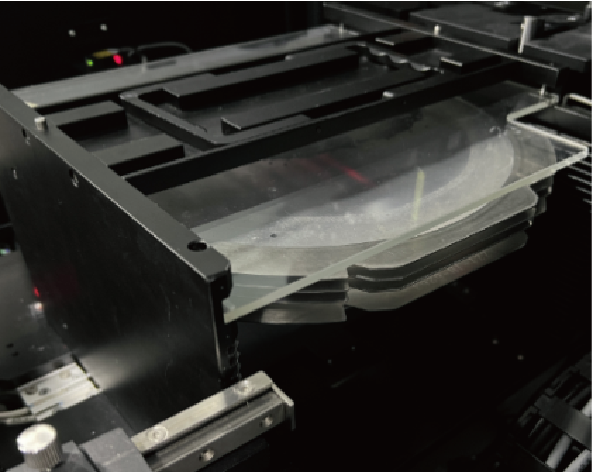

Stacking loading Multiple feeding methods, compatible with stacking feeding function, improving customer selectivity

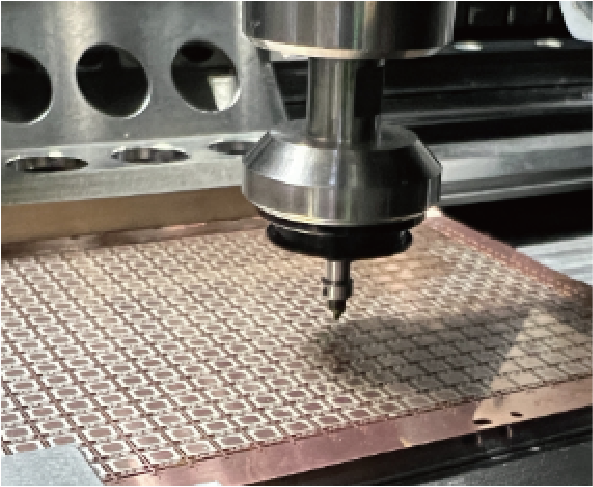

Nozzle station Equipped with a fully automatic wafer loading and unloading processing system, support to the SECS/GEM protocol

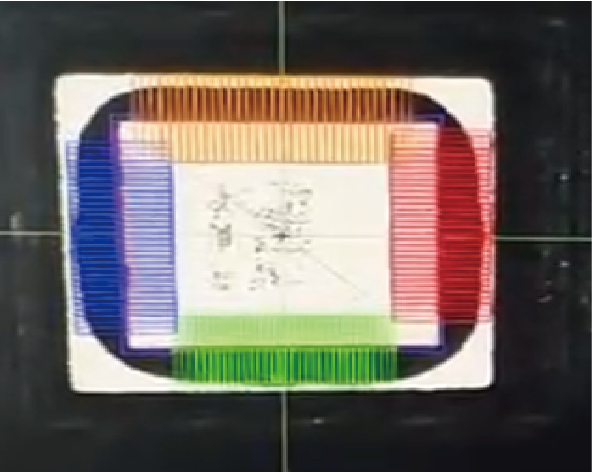

Visual recognition 2448x2048 resolution 256 gray levels Support gray value template, custom shape template The platform can be positioned twice The angle error is ±0.01deg
Real-time compensation It can detect the image after bonding and do automatic real-time compensation to ensure stable mounting accuracy

Product Parameters:

Notices:

1.Leakage protection switch: ≥100ma

2.Compressed air requirement: 0.4-0.6Mpa

Inlet pipe specification: Ø10mm

3.Vacuum requirement:<-88kPa

Inlet pipe specification: Ø10mm

Tracheal joint: 2 pieces

4.Power requirements:

①Voltage: AC220V, frequency 50/60HZ;

②Wire requirements: Three core power copper wire, wire diameter≥2.5mm², leakage protection switch 50A, leakage protection switch leakage≥100mA.

5.The ground is required to withstand a pressure of 800kg/m²
