    High Speed Small Footprint IC Bonding Machine Modular Platform Die Bonder Machine

    Ask Lasest Price
    Brand Name : Suneast
    Model Number : CBD2200 EVO
    Certification : CE、ISO
    Price : Negotiable
    Payment Terms : T/T,
    Delivery Time : 25~50 days
    • Product Details
    • Company Profile

    High Speed Small Footprint IC Bonding Machine Modular Platform Die Bonder Machine

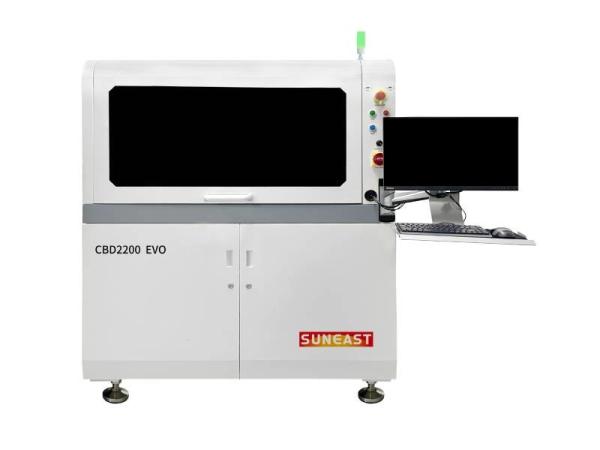

    Productive High Speed Small footprint IC Bonder CBD2200 EVO Modular Platform Design


    Features:

    • High speed, accurate solidification capacity ±10um@3σ;
    • High production efficiency, low cost input
    • High multi-chip processing capacity, support 16 different types of chip placement
    • High flexibility to support multiple carrier operations
    • Can work in different plane heights, support deep cavity work
    • Modular platform design, small appearance, small footprint

    Product advantage:

    High precision

    Accuracy: ±10μm@3σ

    Angle: ±0.15°@3σ

    High precision linear motor

    Waffle pack / Gel-Pak

    Supports 16 Waffle packs (2 "x 2")

    4”x 4”size is available.

    Automatic height measurement

    Accuracy: 3μm

    Supports a variety of probes

    Can be replaced with laser

    altimeter according to demand

    Nozzle station

    Quick automatic nozzle change

    Supports 7 nozzle stations.

    Visual recognition

    2448x2048 resolution

    256 gray level

    Support gray value template,

    custom shape template

    The platform can be positioned twice.

    The Angle error is ±0.01deg.

    Deep cavity operation

    Work at different plat heights.

    The maximum depth is 11mm.


    Features of dispensing function:

    • Supports various types of epoxy adhesives
    • Meet various graphic dispensing needs
    • Comes with commonly used standard graphics library
    • Support custom graphics library

    Product parameters:

    ItemSpecification
    Placement accuracy≤±10um@3σ
    Placement angle accuracy±0.15°@3σ
    Force control range20~1000g(with different configurations, the maximum support is 7500g)
    Force control accuracy20g-150g:± 2g@3σ 150g-1000g:±5%@3σ
    Substrate pallet size(mm)L200 X W90~150
    Tray size(mm)Based on customer products
    Loading/UnloadingManual / auto
    IC dimension(mm)L0.25X W0.25—L10 X W10
    IC supplyWaffle tray
    Core module movement modeLinear motor + grating scale
    Glue feeding modeDispensing + painting glue
    Auto change nozzleSeven
    Bottom photo-takingEquipped with camera
    Machine dimension(mm)L(1400)*W(1250)*H(1700)
    WeightNet weight of equipment:Approx.1500Kg

    Notices:

    1.Leakage protection switch: ≥100ma

    2.Compressed air requirement: 0.4-0.6Mpa

    Inlet pipe specification: Ø10mm

    3.Vacuum requirement:<-88kPa

    Inlet pipe specification: Ø10mm

    Tracheal joint: 2 pieces

    4.Power requirements:

    ①Voltage: AC220V, frequency 50/60HZ

    ②Wire requirements: Three core power copper wire, wire diameter≥2.5mm², leakage protection switch 50A, leakage protection switch leakage≥100mA

    5.The ground is required to withstand a pressure of 800kg/m².
