SVR-V Series Vertical Curing Oven Production Streamlined

SVR-V series on-line vertical oven, newly upgraded design, more humanized. With segmented heating and independent temperature control, the heating is more efficient and temperature control is more accurate. The transportation system is stable and reliable, and the operation and maintenance are convenient, automatic loading and unloading, intelligent production, high production efficiency. Small size, which effectively shorten the length of production line. The vertical oven SVR-V series are even more advantageous for the curing applications of long boards, up to 1200mm. Hundreds, thousand, and ten thousand cleanliness equipment to meet the requirements of clean production process.

Advantages:

• Optimal solution for longboard curing
• Open layout, simple, easy to maintain
• The storage quantity can be set, flexible operation
• Smaller space, lower energy consumption

Roller type conveying mode, no rails wear risk, no need oil lubrication, reduce the use and maintenance costs
Lifting system with standard servo motor driving, smooth operation, more accurate positioning, effectively improve the stability
With barcode reader, product information can be traced to support smart factory construction. (option)

Application:
Main application: Chip bonding, under fill, components packing and other production process
which needs thermo curing(Include LED, FPC, automobile, 3C Electronic product, motor, instrument, communication and other industries)
SVR-V series Especially suitable for long board curing, such as LED strips, FPC, etc.

Options:
Cooling unit

1. Equipped with a cooling docking conveyor after the oven(option: water chiller for quick cooling);
2. Equipped with a cooling stocker after the oven, large storage quantity.

Nitrogen system
Equip with Nitrogen regulating flowmeter and the oxygen analyzer.
Heating system
Available for 4 modules, 8 modules, 12 modules
Conveyor system
The storage quantity and the spacing between boards can be customized according to the production process.
Rack
Space can be reserved for the bottom fixture return line.

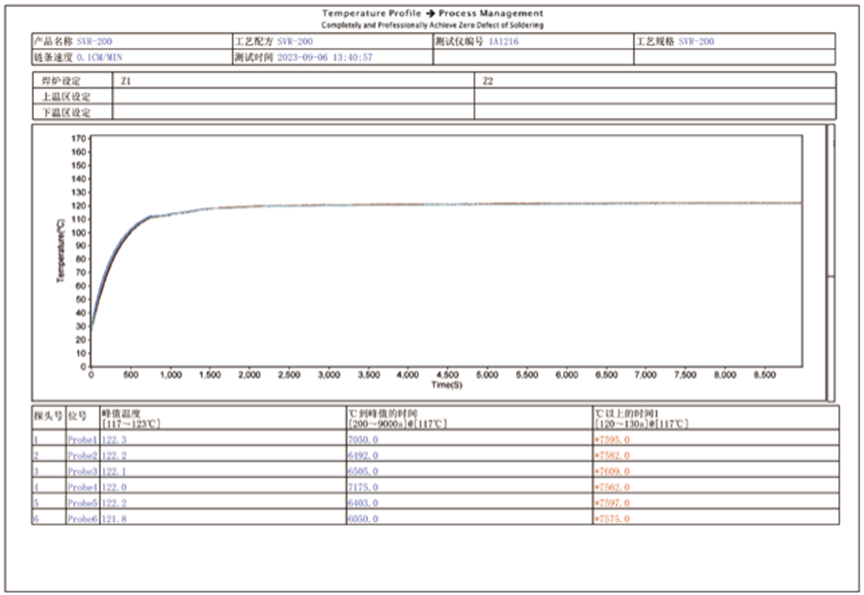

Temperature profile:
a. The temperature profile of vertical oven is composed of heating stage and constant temperature stage.
b. Test fixture: L260mm*W200mm*H20mm, temperature uniformity deviation ≤1℃

Product Parameters:

Notices:
1.Power requirements:
①Three phase five wire: voltage 380V, frequency 50/60HZ;
②The wire diameter requirement is 16mm², with a leakage protection switch of 125A and a leakage capacity of 150-200mA.
2.The ground is required to withstand a pressure of 1000kg/m².
3.External ventilation requirements:
①Specification of heat dissipation exhaust duct Ø250mm; Exhaust air volume 15M³/min;
②Specification of exhaust duct Ø100; Exhaust air volume 5M³/Min.
